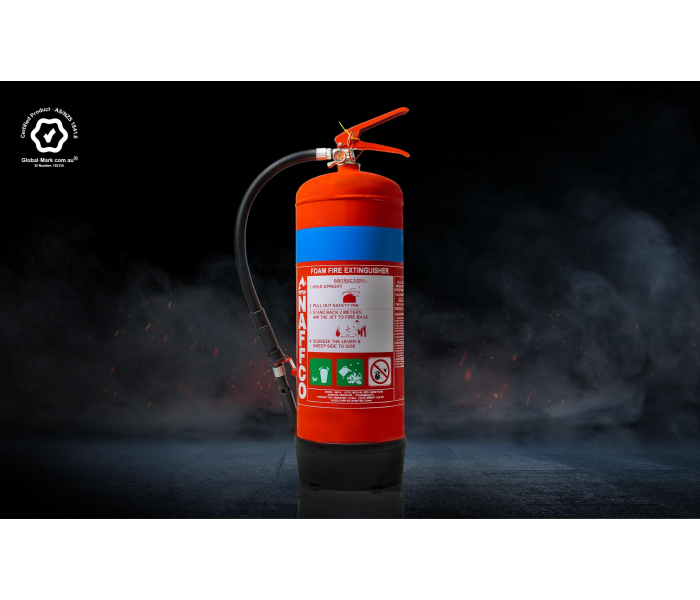

NAFFCO stored pressure and cartridge operated foam extinguishers are multipurpose, ideal for fires involving volatile liquids and freely burning materials such as paper, cloth, wood and furniture. Suitable for Class A and Class B fire risks.
FEATURES
- AFFF (6%) Synthetic Aqueous Film – Forming Foam Agent capable of fighting Class A, B fires.
- Australian & New Zealand Standard AS/NZS 1841.4, certified by Global-Mark Pty Ltd.
- High quality external polyester paint.
- Thermoplastic internal coating to prevent corrosion.
- Spray nozzle to provide high fire rating.
- Controlled discharge.
- Brass nickel chrome plated head valve with simple squeeze operation.
- Unique gauge testing system.
- Unique color code handle and base (Optional).
- Rechargeable and easy to service.
*IDEAL USE: Schools, Theatres, Apartments, Offices and Dry Goods Store.
*NOTE: Water based Extinguishers are not suitable for life involving electrical risk.
SPECIFICATIONS
| Model Number | NF 3* | NF 3X* | NF 6 | NFI 6 | NF 6X | NF 9 | NFI 9 | NFA 9* | NF 9X* | NFC 6X* | NFC 9X* |
| Extinguisher Capacity | 3 L | 3 L | 6 L | 6 L | 6 L | 9 L | 9 L | 9 L | 9 L | 6 L | 9 L |
| Propellant | 95% Nitrogen + 5% Helium | CO2 | |||||||||
| Fire Rating | 8A 70B | 8A 70B | 21A 144B | 21A 144B | 27A 144B | 21A 183B | 21A 183B | 21A 183B | 27A 233B | 27A 144B | 34A 233B |
| Working Pressure | 14 bar | ||||||||||
| Maximum Operating Pressure | 18.5 bar @ 60°C | ||||||||||
| Test Pressure | 30 bar | ||||||||||
| Total Weight | 11.5 kg | 11.5 kg | 11.5 kg | 11.5 kg | 15.5 kg | 15.5 kg | 15.5 kg | 14.5 kg | 15.5 kg | 12.5 kg | 17 kg |
| Range of Discharge | 6 m | 6 m | 6 m | 6-7 m | 6-7 m | 7-8 m | 7-8 m | 7-8 m | 7-8 m | 6 m | 7-8 m |
| Duration of Discharge | 22-25 sec. | 25-27 sec. | 22-25 sec. | 22-28 sec. | 30-32 sec. | 32-35 sec. | 32-35 sec. | 32-35 sec. | 35-38 sec. | 18-20 sec. | 35-40 sec. |
| Hose Length with Nozzle | N/A | N/A | 680 mm | 680 mm | 680 mm | 680 mm | 680 mm | 680 mm | 610 mm | 680 mm | 680 mm |
| Operating Temperature | +5°C to +60°C | ||||||||||
| Cylinder Material | CRCA Steel Sheet | ||||||||||
| Height x Diameter (mm) | 420 x 132 | 420 x 132 | 610 x 150 | 610 x 150 | 610 x 150 | 630 x 185 | 630 x 185 | 630 x 185 | 630 x 185 | 630 x 185 | 630 x 185 |
*LPCB Approval only, External Cartridge Operated.
