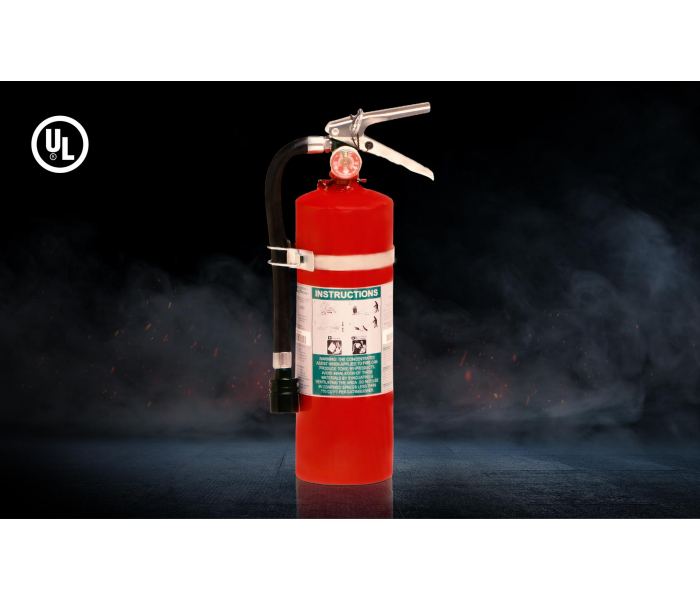

NAFFCO UL Listed Clean Agent fire extinguishers (HALOTRON) is a clean, non-conductive gaseous agent that is an excellent replacement for Halon 1211 extinguishers. Clean Agent is suitable for use on Class A, Class B, and Class C fires.
FEATURES
- Residue-free Hydro-chlorofluorocarbon gas agent pressurized with argon.
- Typically used for protecting sensitive electronic equipment in offices, classrooms, churches, parking garages and hotel/motel assembly halls and guest areas.
- Also used for protecting sensitive electronic equipment in businesses such as retail stores, light manufacturing facilities, research facilities, auto dealerships, vehicle/ aircraft/marine service centers, and manufacturing processes such as painting, dipping, and coating.
- Not suitable for use on fires involving cooking oil and grease.Recommended for use on sensitive electronic equipment.
- Clean Agent Extinguishers are USCG Approved (Marine Application)
SPECIFICATIONS
| Model Number | N 05L FSA*/ N 05L FSB** | N 05L HSA*** | N 11L SA*/ N 11L SB** |
| Agent Capacity | 5 lb. (2.27 kg) | 5.5 lb. (2.49 kg) | 11 lb. (5 kg) |
| UL Rating | 5-B:C | 5-B:C | 1-A:10-B:C |
| Discharge Time | 9 sec. | 9 sec. | 9 sec. |
| Range (FT/M) | 9-15/2.7-4.5 | 9-15/2.7-4.5 | 9-15/2.7-4.5 |
| Operating Pressure | 100 psi (689 kPa) | 100 psi (689 kPa) | 100 psi (689 kPa) |
| Operating Temperature Range | -40ºF to +120° F | -40ºF to +120° F | -40ºF to +120° F |
| Bracket | Wall | Wall | Wall |
| USCG Approval (Marine Application) | Type B:C size I | Type B:C size I | Type B:C size I |
| Ship Weight | 9.25 lb. (4.2 kg) | 10.0 lb. (4.5 kg) | 21.25 lb. (9.6 kg) |
| Unit Height | 16.375 in (41.6 cm) | 16.375 in (41.6 cm) | 17.5 in (44.5 cm) |
| Unit Width | 6.5 in (16.5 cm) | 6.5 in (16.5 cm) | 8.625 in (21.9 cm) |
| Unit Diameter | 4.25 in (10.8 cm) | 4.25 in (10.8 cm) | 7 in 17.8 cm) |
* Aluminum Head valve
** Brass Head valve
*** Aluminum head valve with discharge hose
