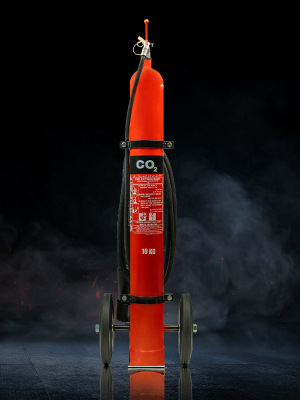

NAFFCO Mobile CO2 fire extinguishers are characterized by their high performance and simple method of operation. They are suitable for fires involving flammable liquids, gases and electrical equipment. Effective for Class B, C & E. Suitable for Class B fire risks.
FEATURES
- The Fire Extinguishers are designed to comply with the specifications and requirements of BSEN 1866-1.
- Kitemark approved.
- High-grade brass head valve ensures reliability and Discharge outlet is controlled by High Pressure Ball Valve.
- Cylinder assembly compliance to council directive 2014/68/EU (PED) is certified by BSI(2797).
- High gloss polyester powder painted UV stabilized after shot blasting ensures corrosion resistance under extreme conditions.
- Safety valve is fitted in each extinguisher for maximum safety.
- Discharge nozzle designed to produce a jet of extinguishing gas.
SPECIFICATIONS
| Model Number | NTC 10X | NTC 30X |
| Extinguisher Capacity | 10 kg | 30 kg |
| Fire Rating | 70B | 113B |
| Working Pressure | 55 – 60 bar @ 25ºC | 55 – 60 bar @ 25ºC |
| Maximum Operating Pressure | 174 bar @ 60ºC | 174 bar @ 60ºC |
| Test Pressure | 250 bar | 250 bar |
| Total Height & Width | 1,435 x 440 mm | 1,095 x 675 mm |
| Total Weight | 52 kg | 125 kg |
| Range of Discharge | 6-8 m | 6-8 m |
| Duration of Discharge | 19 – 21 sec. | 42 – 45 sec. |
| Operating Temperature | -20ºC to +60ºC | -20ºC to +60ºC |
| Propellant | Self Propellant | Self Propellant |
| Hose Size & Length | Bore ⅜’’ x 5 m | Bore ⅜’’ x 5 m |
| Cylinder Material | Carbon Steel | Carbon Manganese Steel |
RESOURCES
| CE Certificate | Download |
| Kitemark Approval Certificate | Download |
| LPCB Approval Certificate | Download |
| Quality Assurance Certificate | Download |
| Technical Datasheet | Download |
| Technical Drawings | |||
| NTC 10X GA | NTC 30X GA | ||
TECHNICAL DRAWINGS
