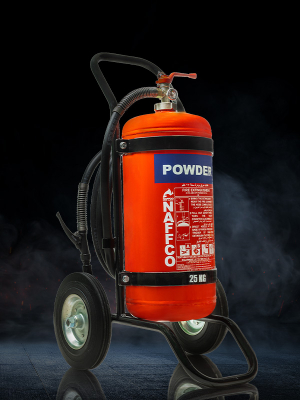

NAFFCO Mobile stored pressure ABC Dry powder extinguishers are characterized by their high performance and simple method of operation. The ABC Dry powder Mobile type extinguisher contains high performance powder and thus has achieved highest fire rating.
They are suitable for multipurpose application of fires involving free burning materials, flammable liquids, flammable gases and electrical equipment. Effective for Class A, B, C & Electrical fires.
FEATURES
- The fire extinguishers are designed to comply all the specification requirements of BS EN 1866-1.
- Kitemark & LPCB approved for different capacity extinguishers.
- Cylinders compliance to council directive 2014/68/EU (PED) is certified by BSI (2797)
- Highest fire rating due to high performance ABC powder.
- Ready for instant use and simple to operate.
- Fully controlled and easy operation by rust free brass valve.
- Cart and cylinder are made of rugged steel and welded to meet extreme use conditions.
- Easily transportable & Field rechargeable.
- Highly visible pressure-indicating gauge.
- Externally coated by Electrostatic powder painting after shot blasting ensures maximum corrosion resistance.
- Brass nickel plated head valve with simple lever operation.
SPECIFICATIONS
| Model Number | NTP25 | NTP50 | NTP100 |
| Extinguisher capacity | 25 kg | 50 kg | 100 kg |
| Fire Rating | IIB & IIIB | IVB | IVB |
| Working Pressure | 18 bar | 18 bar | 18 bar |
| Maximum Working Pressure | 22 bar | 22 bar | 22 bar |
| Test Pressure | 32 bar | 32 bar | 32 bar |
| Total Height & Width | 1025 x 500 mm | 1065 x 550 mm | 1105 x 650 mm |
| Total Weight | Approx. 63 kg | Approx. 100 kg | Approx. 172 kg |
| Range of Discharge | 7-9 m | 7-9 m | 8-9 m |
| Duration of Discharge | 25-30 sec | 47-55 sec | 85-90 sec |
| Operating Temperature | -20°C to +60° C | -20°C to +60° C | -20°C to +60° C |
| Propellant | Nitrogen | Nitrogen | Nitrogen |
| Hose size & Length | 16 mm x 5 m | 16 mm x 5 m | 16 mm x 7 m |
| Cylinder Material | Hot rolled steel plate | ||
